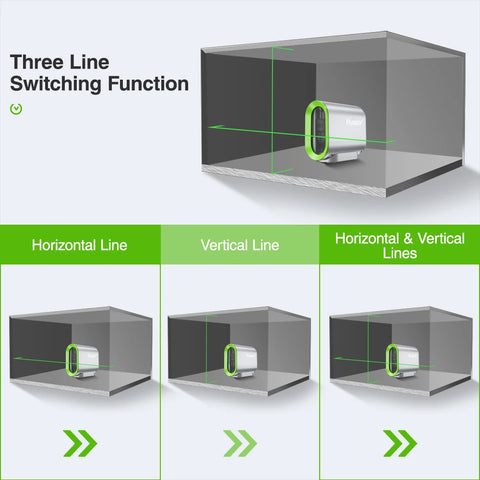

Line Switching Function: Three line switching functions
Measurement Model: 2 lines
Model Number: Y011G
Name: Huepar 2 lines laser level
Origin: Mainland China
Power Source: Rechargeable Li-ion Battery
Size: 12.5*10*9CM
Type: Vertical & Horizontal Lasers
Wavelength: 505-520nm
is_customized: Yes

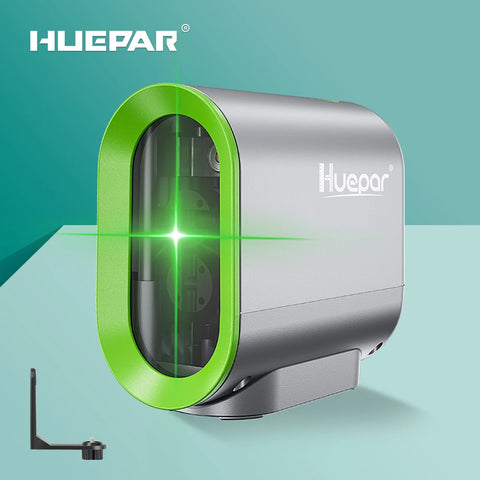

Huepar 2 lines Self-leveling Laser Level & Rechargeable Li-ion Battery Green Beam Cross Line with Pulse Mode & Tripod laser Tool-Y011G
Product Description:
Huepar Y011G Self-leveling Green Laser Level Specifications:
● Laser Beam: Green Beam
● Projection: 2 Green Laser Lines
● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
● Laser Wavelength: 505-520nm
● Horizontal / Vertical Accuracy: ±3mm/10m
● Leveling / Compensation Range: 3.5° ± 0.5°
● Leveling Time: 3s

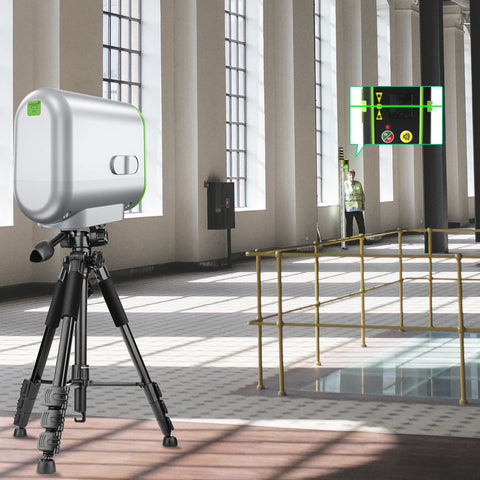

● Working Distance: 25m (100 LUX), 50m with Huepar Laser Detector LR-5RG / LR-6RG
● Operating Time & Power Source: 7 hours with built-in Li-ion battery 3.7V / 2200mAh

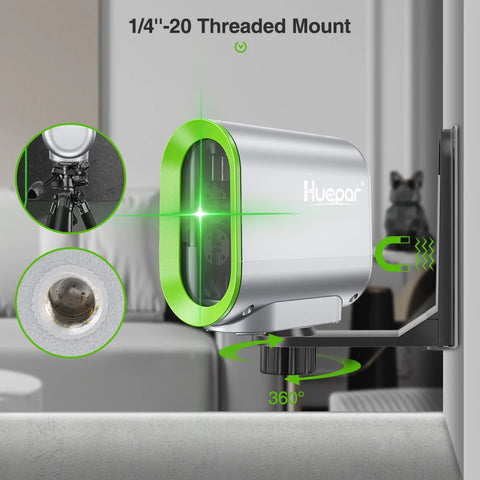

● Mount Size: 1/4"-20
● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
● Operating Temperature: Between -10℃ and +50℃
● Storage temperature: Between -20℃ and +70℃
WARNING:
● Do not point the laser beam directly into the eyes.

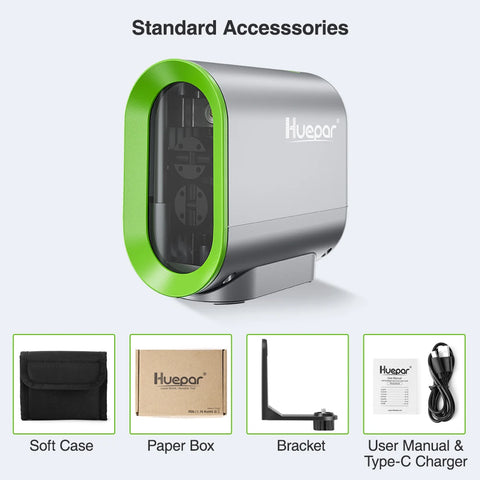

Package Contents:
1 x Green Laser Level Y011G
1 x Type-C Charging Cable
1 x L-shape Magnetic Pivoting Base
1 x Carry Pouch
1 x Multilingual User Manual

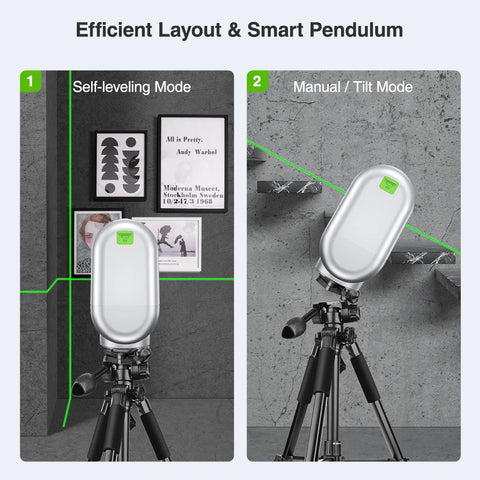

Self-levelingMode & ManualMode:
Self-leveling mode:
When the laser tool is switched to the unlocked position, the self-leveling mode is enabled. The laser beam will flash when the tool is beyond self-leveling range 3.5° ± 0.5°.
Manual mode:
When the pendulum lock is in the locked position, you can place the laser tool at any angle to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.
Mini Cross Line Laser Level with Built-in Rechargeable Lithium Battery
3D Model Preview
