Ecowitt HP2564 Wittboy Pro Weather Station, Includes HP2560 TFT Display Console and WS90 Outdoor Solar Powered Weather Sensor
All-in-1 WS90 Outdoor Weather Sensor Array :
Temperature, humidity, wind direction/speed, light and UV levels and Haptic Rainfall Sensor(More accuracy Anti-vibration design).
Haptic Rainfall Sensor
Compared with traditional rain gauge sensor, WS90 outdoor sensor is equipped with a Haptic Rainfall Sensor at the top that accurately measures rainfall volume in detail: featuring rain detection and rain stop interpretation functions. This special sensor does not vibrate, it is not affected even by harsh weather conditions, and it’s designed to keep working with accuracy in any context.
Slope Design The top of haptic rain gauge has been added a slope.
Accumulated water at the top of the piezoelectric sensor can be influenced by wind, leading to potential misjudgments regarding rainfall.
After our modifications and validation, this slope proves advantageous for accurately identifying precipitation status.
Attention
1.About daily rain deviation
The daily rain deviation of WS90 is very small in the long run, but under certain conditions the deviation can be larger: as the rain drop size and wind speed can have different impacts on the sensor output which lead to this variance. The WS90 product suffer from this imperfectness. If you are very
demanding on rain data accuracy, we suggest you buy WH40 and use it together with WS90. If there is no precise requirement on data of each rain,
then WS90 is just fine: After all the device works well after a longer run time.
(Daily rain deviation for WH40 and WS90)
2. How to calibrate WS90
The WS90 is equipped with a haptic rain sensor, and the system offered a way that users can calibrate the rain sensor accuracy by themselves. To carry out a proper calibration, please check the following:
1. A reference will be needed to record the rainfall value, and also it is quite important to have the ability to record the rain rate. For this, our WH40 rain sensor can be used for this purpose.
2. There are five rain gain parameters you can set: Piezo Rain1: Rain5. So usually, we leave Rain1 as it is unless you can confirm it made constantly same result, and then you can adjust this.
3. Have rain data recorded, like this: we set rain4 gain to 6/7.5 = 0.8. For easier handling, you can set rain2:rain3:rain5 all the 0.8 for the time being. Only when different rain rates are recorded, you have the WS90 rain divided by 0.8 to get 1.0 rain, and then have the (reference/WS90/0.8) calculated again, and fill up the corresponding rain gain setting precisely.
(Rainfall values recorded for WH40 and WS90)
(Set five rain gain parameters)
Dual-Power Supply & Auto-Heater Function
Sensor solar panel (built-in): 6.5V/4mA
Sensor (backup): 2 x AA 1.5V battery (not included)
Equipped with a built-in solar panel on the top to charge super CAP to ensure night use, your very own weather station has the advantage of being a solar-powered device, Wherever you place it outdoors, you don’t need to charge it or even worry about it. Its solar panel will take care of keeping WittBoy running at full power— and, in case of prolonged rainy days, its backup batteries will kick in to maintain its functionality.
WS90 equips a built-in thermostat heating plate, The heat plate will automatically turn on below 5°C (40°F) and automatically turns off above 10°C (50°F), the heat plate will melt snow and ice and keep its anemometer working as usual.
About the Extension Power Cord(Sold Separately):
The external power cord (Sold separately, click here) can both heat and act as a power supply, but please note the following points:
1. We recommend our customers use a 12V power supply because there is a heating plate inside the battery compartment of WS90, the purpose of the heating plate is to melt the snow covering the battery compartment (snow will affect the wind speed measurement).
Moreover, with a 12V power supply, the power cable can be stretched longer.
2. If you don't need to supply power from a distance, you can also use a 5V power supply, but it will cause the heating plate to be inefficient and melt the snow slower.
3. Be sure to pay attention!!! The supply voltage range can only be 5~20V, more than that will be very dangerous and will cause damage to the WS90.
About the Snowpack
For the topmost snow ①, it can't be heated and melted by the heating plate(cause there's no heating plate on the top), which can only be swept away manually, otherwise, it will affect the solar power supply and rainfall measurement.
For the snow in the middle②, snow will affect the wind speed measurement, there is a heating plate here, so you need to connect the heating cable ③ to heat and melt the snow.
About Size & Mounting
You can attach a pole(not included) to a permanent structure and then attach the sensor package to it.
The install hole will accommodate a pole diameter of 1.0 inch(pole not included).If you don't use external heater, you can put the heater cable inside the pole fixing thread, which can make the setup looking neat and tidy.
Waterproof IPX5 Standards
The Cover of the Temperature and Humidity Sensor meets Waterproof IPX5 Standards, and it is made from Thermal Insulation Materials. The cover also features a blind design that allows for better heat dissipation.
While compact, the entire structure of WS90 is built to be robust and designed to withstand the test of time. The Temperature and Humidity Sensor Kit can be replaced whenever required.
Bird Spike Installation Instructions
Explore the environment around you
Whether you're a weather enthusiast or simply someone who needs to know what weather it is now, WittBoy pro(HP2564) can be a new and unique weather station for you to protect your family and your property with the instant alerts alarm.
HP2560_C 7'' TFT Display Console :
Upgraded physical buttons to touch buttons and upgraded antenna integrate indoor sensor
7" large TFT (high resolution) colored display console
The console supports English, Deutsch, Français, Italiano, Español, Nederlands, Português and Русский
Two background (dark/light) themes as option.
Indoor temperature, humidity with integrated design and absolute and Relative barometric pressure
View historical records of sensors and graph directly on the console
Collects sensor data from various supported wireless sensors. Additional/optional sensors: Up to 8 WN31(WH31) multi-channel temperature and humidity sensors Or 8 WN30 multi-channel temp sensors, Up to 8 WN34 Temperature Sensors, Up to 4 WH41/WH43 PM2.5 air quality sensors, One WH45 PM2.5/PM10/CO2/temperature and humidity all-in-1 sensor, Up to 8 WH51 soil moisture sensors, Up to 4 WH55 water leak sensors, One WH57 lightning sensor and future sensors to be developed.
Pushes sensor data to cloud weather services: Ecowitt/WU/WOW/Weathercloud, Custom own server data hosting possible when server data exchange is compatible

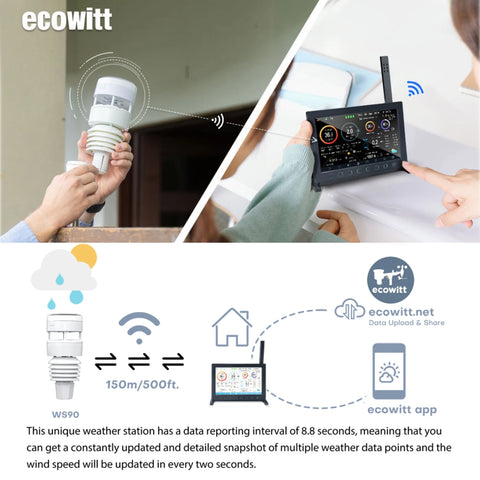

Long Transmission Range
Up to 150m (500ft) of distance if there are obstacles within the range and up to 300m (1,000ft) of distance in open space.
This unique weather station has a data reporting interval of 8.8 seconds, meaning that you can get a constantly updated and detailed snapshot of multiple weather data points and the wind speed will be updated every two seconds.
Publish to Internet Weather Services
✔ Weather Underground : Provides local & long-range weather forecasts, weather reports, maps & tropical weather conditions for locations worldwide.
✔ WOW : A UK based weather observation website.
✔ Weather Cloud : A large network of weather stations reporting data in real time from all over the world.
✔ Ecowitt Weather : Ecowitt's new weather server that can host a bunch of sensors that other services don't support at this time.
✔ Custom sites （using either Wunderground or Ecowitt protocol.
Specifications:
WS90 Outdoor Weather Sensor Array
Transmission distance
150 m (450 ft.) in open field
RF Frequency
North America: 915MHz; Europe: 868MHz; Other areas: 433MHz
Temperature range
-40°C – 60°C (-40°F - 140°F)
Temperature accuracy
± 0.3°C, or ± 0.6°F
Temperature resolution
0.1°C, or 0.1°F
Humidity range
1% ~ 99%
Humidity accuracy
±3.5%
Humidity resolution
1%
Rain volume display range
0 – 9999 mm
Rain volume resolution
0.1mm/0.01inch
Wind speed range
0 – 40 m/s (0 ~ 89mph)
Wind speed accuracy
<10m/s, ±0.5m/s; ≥10m/s, ±5%
Wind direction accuracy
<2m/s, ±10°; ≥2m/s, ±7°
UV-Index range
0 - 15
Light range & accuracy
0 – 200 kLux ( ± 15% )
Sensor reporting interval
8.8s
HP2560_C TFT Display Console
Temperature ange
-10°C —— 60°C (14°F —— 140°F)
Temperature resolution
0.1°C, or 0.1°F
Humidity range
10% ~ 99%
Humidity resolution
1%
Barometric pressure range
300 – 1100 hPa(8.85 – 32.5 inHg)
Barometric pressure accuracy
± 5 hPa in 700 – 1100 hPa range
Barometric pressure resolution
0.1 hPa (0.01 inHg)
Alarm duration
120 seconds
Sensor reporting interval
60 seconds
Coming with Bird Spike Accessory
The warm-hearted gift——bird spike allows you to own safe and sound intelligent weather station. Say Goodbye to birds interference. This Detachable Metal Bird Spikes Set for outdoor sensor is designed to discourage birds from landing on the outdoor sensor
Package List:
1* WS90 7-in1 Weather sensor
1* HP2560_C Display/Gateway/Console
1* Detachable bird spikes
1* Power plug
1* Power cord
1* Router cable
1* User manual
FAQ: Q1: What's the difference between HP2564 and GW2001?
A: HP2564 includes WS90 Outdoor Weather Sensor Array and HP2560_C TFT Display Console, and GW2001 includes WS90 and GW2000 Wi-Fi Gateway. The former shows the data on the display and the latter is viewed via Ecowitt app.
